Introducing the latest from Syngene: PXI
Syngene imaging systems are recognised world-wide as high quality, high performance instruments for the capture and analysis of fluorescence gels, chemiluminescence Western blots, protein samples and stain-free techniques.
PXi HIGHLIGHTS
What makes a PXi system special
Systems
PXi models feature exclusive new generation high  sensitivity 16 bit CCD systems with high quantum  efficiencies. The 4m, 6m and 9m pixel options are  cooled to -57 degree C, have extremely low read out noise and  deliver exceptional images for chemiluminescence and  low light level fluorescence applications. Resolution for bands and spots is as low as 40μm.

Lenses
Each system has a carefully selected lens to maximise the use of the camera sensor and to produce the best possible performance in image quality. Each lens is 'fixed focal length' such that no zooming of the samples is required, (with the exception of PXi4 EZ which comes with a motor driven zoom lens). Syngene's unique FlatFix technology ensures perfect background correction for all images while an automatic lens  correction function is utilised to remove distortions that can sometimes affect images.

Filter wheel
All PXis have a motor driven filter wheel which can house up to 7 different emission filters to cover a wide range of applications. The filter selection is controlled by GeneSys once the user has defined the application they are working with. User access to the filter wheel to fit more filters is via the  removable front cover/monitor.

Filters
PXi can be fitted with a wide range of emission filters to extend its range of applications. A UV (orange) filter is supplied as standard with the PXi.

Sample drawer

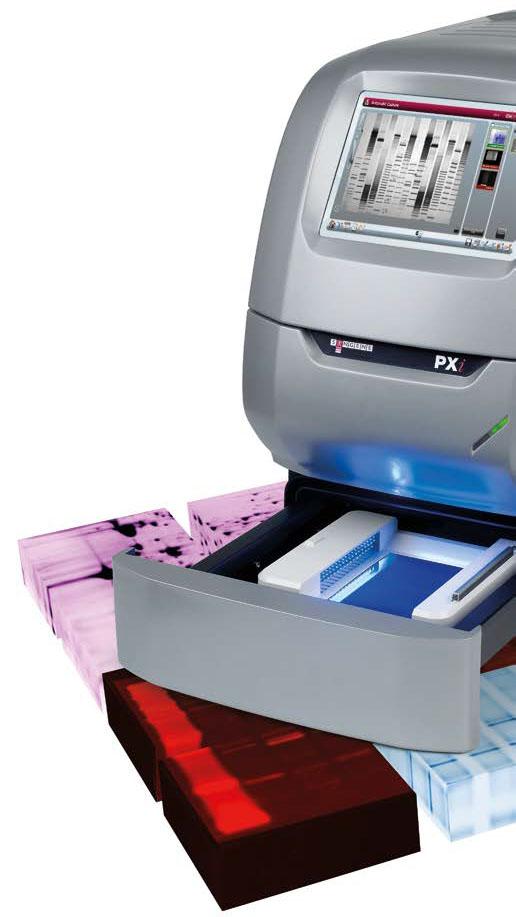

The PXi has a sliding sample drawer. Samples can be easily positioned in the drawer using the integrated alignment guide for the positioning of the transilluminator and any chemiluminescent blots being used. The drawer has an electronic lock which prevents anyone from accessing the system during image capture.

Features
  • New generation very high quantum efficiency cameras
  • Compact ergonomic design
  • Fully automatic control
  • Ability to image: DNA and RNA gels, Coomassies, ECL chemi blots, Fluorescent western blots with Cy2, Cy3, Cy5, Cy7, Alexa488, 549, 565, 589, 680, and IR800. Plus more.
  • Local Maryland Company!
Benefits
  • Superior sensitivity - allows capture of very low light emissions from gels and blots
  • Perfect for users working with small format gels and blots
  • Effortless capture of chemiluminescent and multiplex images without 'guesswork'
  • Fully programmable to work with any application including complex multiplex experiments
