SingMai Vision

The newsletter of SingMai Electronics (no. 30)

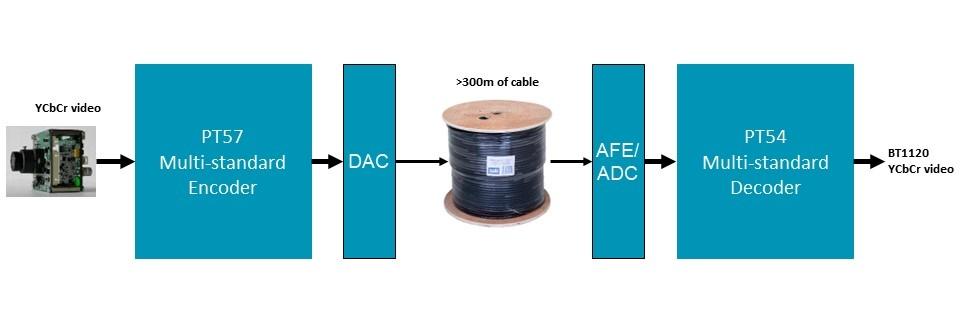

Transmit HD Video Long Distances over Cable

SingMai offer encode and decode IP cores for transmitting and receiving HD video across long distances of low cost cable

PT57 is a 'universal' video encoder IP core

Supports encoding of NTSC, PAL, AHD and aCVi.

Optional 960H, HD-CVI and HD-TVI encoding.

Supports up to 5M/20Hz video formats.

Compact design.

Field proven.

PT54 is a 'universal' video decoder IP core

Supports decoding of NTSC, PAL, AHD and aCVi.

3D comb filter for PAL and NTSC.

Supports up to 5MP/20Hz video formats.

HD-CVI, 960H and HD-TVI decoding optional.

One-off payment - no complicated licensing.

aCVi is SingMai's proprietary method for the long distance transmission of high definition video.

aCVi can transmit high definition video across more than 300m of coaxial or twisted pair cable with near broadcast quality, and longer distances with some small signal degradation.

Features:

Secure transmission (proprietary modulation).

Low latency (<100us transmitter to receiver).

Uncompressed transmission.

Supports bidirectional data transmission.

Supports power over cable.
