New! SWP Series - Low Size, Weight, Power & Cost Enclosed Wireless Modules

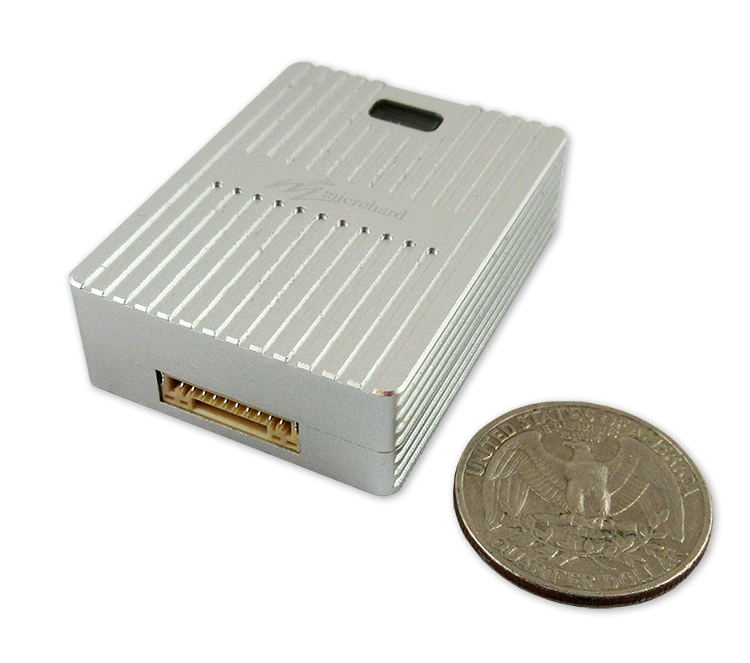

detail_pMDDL2X50-SWP_Front image

November 3, 2023 - The new SWP Series provides an extremely compact and robust enclosure for quick deployment of Microhard wireless modules. The SWP series modules are smaller & lighter, have lower power requirements, and cost less than the standard enclosed models.



The SWP Series modules are now currently available for the pMDDL2350. pMDDL2450 and pMDDL2550 models. In addition to the incredibly small and light size, the SWP features a single connector for power and data, low profile MMX antenna connectors, and health and status LED's.

SWP Series

pMDDL2350-SWP


  • Data Rates > 25 Mbps
  • 36 dBm Total Tx Power
  • 2304 - 2390 MHz
  • 2X2 MIMO
  • Dynamic Frequency Selection
  • 256-bit AES
  • > 50 km Range
  • Weight: 37 grams
  • Size: 36 x 48 x 15mm


Data Sheet

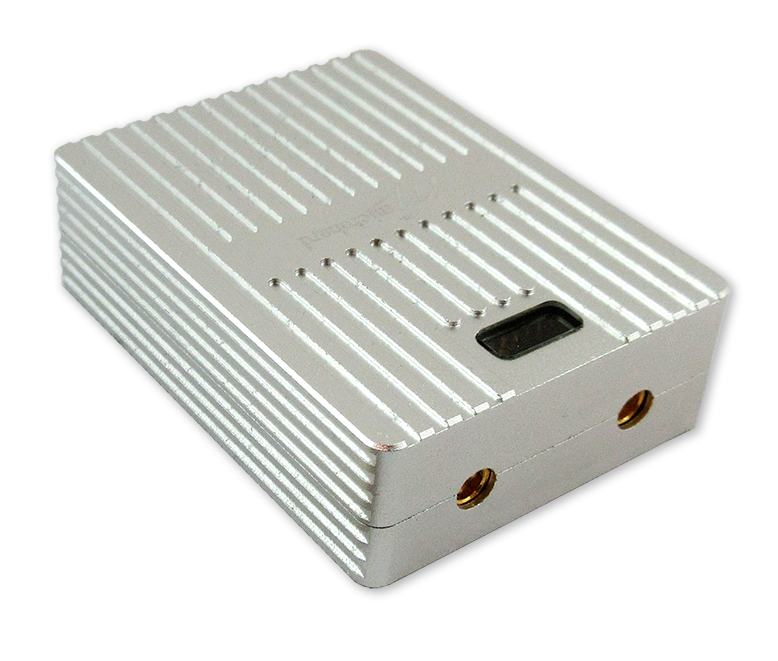

detail_pMDDL2X50-SWP_ALT image

pMDDL2450-SWP


  • Data Rates > 25 Mbps
  • 30 dBm Total Tx Power
  • 2402 - 2478 MHz
  • 2X2 MIMO
  • Dynamic Frequency Selection
  • 256-bit AES
  • Weight: 37 grams
  • Size: 36 x 48 x 15mm
  • FCC | IC | CE | Japan MIC Approved
Data Sheet
detail_pMDDL2X50-SWP_Front image

pMDDL2550-SWP


  • Data Rates > 25 Mbps
  • 34 dBm Total Tx Power
  • 2500 - 2570 MHz
  • 2X2 MIMO
  • Dynamic Frequency Selection
  • 256-bit AES
  • > 30 km Range
  • Weight: 37 grams
  • Size: 36 x 48 x 15mm


Data Sheet
Request Quote
