Stay Alerted With uSwitch CS IP Addressable Relay Encrypted Text/Email

Control and Keep Track of I/O Events and Network Activity From Anywhere

Get Notified on Camera, Sensor, and Alarm Activity

● Trigger notifications from GPIO Inputs

● Trigger notifications from relay state changes, sensor activity, momentary switch changes, or latching states

● Trigger notifications from watchdog reboots and connectivity inconsistencies

Get Notified on Voltage, Temperature, and Pressure

● Trigger notifications from ADC inputs that are user calibratable with limits and triggers and events

● ADC supports Configurable Resolution options, Hardware Sampling Rates, Scaling, Offsets, and Hysteresis

Receive Automatic Alerts for Scheduled Events

● Trigger notifications from the Built-in Scheduler which can run off NTP servers or, (if NTP is not available) a manually entered time

● Scheduler supports up to 8 timed events per entry (up to 20 days/and up to 300 Scheduled Events selectable by relay)

● Scheduler supports Calendar, Weekday, Sunrise/Sunset Events with up to 24 repeatable events per Weekday

Keep Updated on CS and uSwitch Activity

● Trigger notifications from Virtual Relays for Remote relay control that can be latched, momentary, driven from local relays, local inputs, or manually controlled by an operator. Virtual Relays can be driven using either TCP or Web Sockets (with/without SSL) so that any CS can trip a CS anywhere locally or on the Web.

● Trigger notifications from user log-in and configuration changes

● Also, Receive encrypted email/SMS alerts triggered based on I/O events, Watchdog Events, and Scheduled Events

Perfect for automating access control for businesses on a schedule, irrigation, gate operations and so much more.

Control Anything, Anywhere from any Android, iPhone Mac or PC

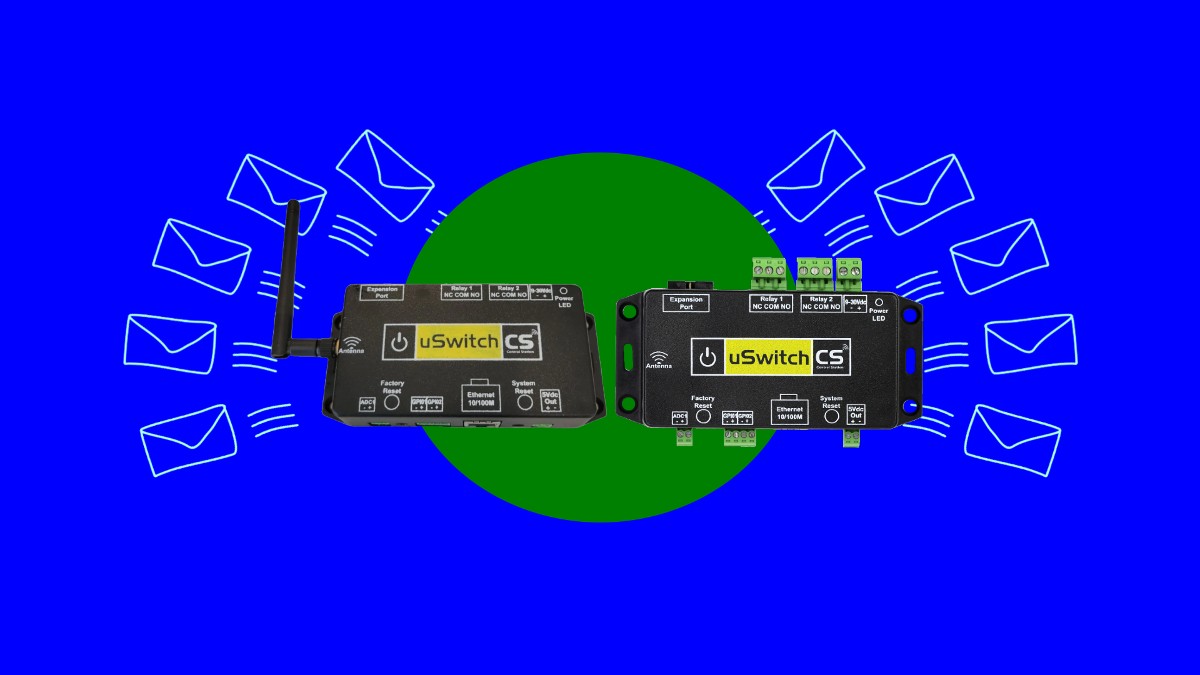

uSwitch CS

The Ultimate Web-Controlled

Multi-Channel Expandable Relay/IO with Built-in Web Server, Voltage Monitoring, Ethernet Port Plus WiFi Access Point All in One Unit

Features:

● Connects to iPhone, Android, PC, Mac, or tablets

● Over-The-Air (OTA) software updates, directly integrated to AWS

● SSL encrypted SMTP mail client for secure, user-defined, notifications deliverable to single/multiple E-ail and SMS recipients based on user-specified event triggers, calendar events, or user actions.

● Security Account, Administrator Account, Twenty (20) user accounts with passwords and privilege levels

● Built-in Wi-Fi (IEEE 802.11 b/g/n) radio supports fully configurable Access Point, Repeater, and Station/Infrastructure modes

● Each Device Security password is Unique and a variety of hacking prevention techniques are deployed to prevent access to the uSwitch without proper passwords when security features are enabled.

● Built-in, user-configurable, web server providing a simple/intuitive interface supporting full OEM customization

Now with Backup and Restore!

You´ll quickly see the many benefits and advantages of the uSwitch CS

What Will You Do with a uSwitch CS?
