DROP-IN STRIPLINE ISOLATORS AND CIRCULATORS
224MHz - 15GHz (Typically 10% Bandwidth).
Can be made to your exact frequency needs.
All circuits are silver plated beryllium copper, suitable for soldering.
Humidity 5 to 95% non-Condensing,
FH-Model
Click Picture for Datasheet

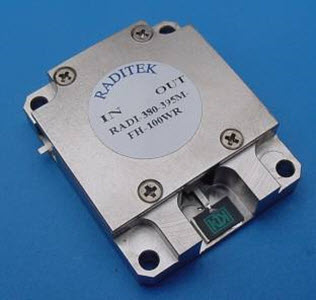

FH Model Isolator (370 to 625 MHz)
or FH3 Model Isolator (224 to 320 MHz)
Up to 40 MHz Bandwidths
100, 110 & 200 Watt Loads
A20 / A30 100 Watt Attenuator
Link to Additional Resource
DD-Model
Click Picture for Datasheet
SS-D Models: (660 MHz to 2.17 GHz)
Isolator DF Model: 200Watts
Isolator DE Model: 100Watts/110Watts
Isolator DD Model: 10Watts/20Watts
Circulator DD Model: 200Watts
Isolator DF Model: 200Watt
Link to Additional Resource
.
DE-Model
Click Picture for Data Sheet
Isolator DE Model with 20dB Attenuator
allowing precise reverse power monitoring
CC-Model
Click Picture for Datasheet
High Volume Stripline SS-C Models:
(1500 MHz to 3.9 GHz)
CC Model: 200Watt Circulator or 10/15/20W Isolator
Link to Additional Resource
CD-Model
Click Picture for Datasheet
CD Model: 110W Isolator,
100W w/Attenuator with 20dB Attenuator allowing precise reverse power monitoring
SS-BBN Model
Click Picture for Datasheet
SS-B Models (3.7 GHz to 14.5 GHz)
1-4 GHz Bandwidth
bb Circulator-40W
bd Isolator-40W
bbn Isolator-2W
bb+ Isolator-2W
BD-Model
Click Picture for Datasheet
Link to Additional Resource
Other RADITEK Isolators and Circulators Include:
Microstrip Drop-In Isolators and Circulators (1.7GHz to 55GHz):
To Meet All of Your Microstrip Requirements:
They can be optimized to your exact frequency needs
Standard dimensions include drop-in replacements for FDK and TDK
Click to View Microstrip Isolators and Circulators Web page
Coaxial (25MHz to 45GHz): a wide range of narrow band to multi-octave, SMA, N, K, 2.4 connectors insulating 2-18GHz
Click to View Coaxial Isolators Web page
Click to View Coaxial Circulators Web page
Cryogenic models: 4-77°K Std. 0.01-4°K
Covering 1-26GHz Coaxial / 7-50GHz Waveguide
Click to View Cryogenic Web page
Waveguide (1.12 to 120GHz): virtually any flange, low to high power, very low loss
Click to View 1.12-17.7 GHz Waveguide Web page
Click to View 17.7-120GHz Waveguide Web page
Lumped Element: Low cost surface mount 5 and 7mm Square, specific frequency bands
Click to View Isolators Lumped Element Web page
Click to View Circulators Lumped Element Web page
