Featured Products

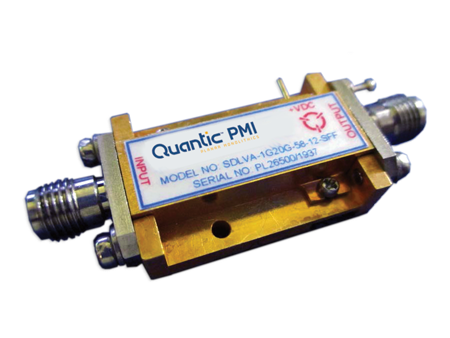

Logarithmic Amplifier

SDLVA-1G20G-58-12-SFF

Frequency Range: 1 to 20 GHz

Frequency Flatness: ±0.55 dB

Log Linearity: ±1.0 dB

Logging Range: -50 to +5 dBm

Input VSWR: 3.0:1

Slope: 14.5 mV/dB

Rise Time: 4.1 ns

Fall Time: 11.8 ns

Recovery Time: 27.9 ns

Propagation Delay: 14 ns

TSS: -56 dBm

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

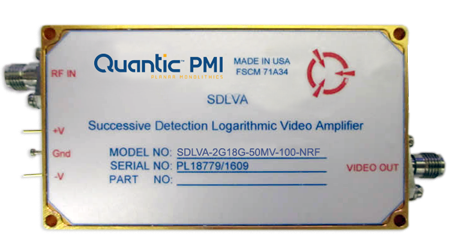

Logarithmic Amplifier

SDLVA-2G18G-50MV-100-NRF

Frequency Range: 2 to 18 GHz

Frequency Flatness: 1.98 dB

TSS: -71.7 dBm

VSWR: 2.0:1

Power Input: +17 dBm CW

Logging Range: -67 to 5 dBm

Log Slope: 51.5 mV/dB

Log Linearity: 1.19 dB

Log Offset: -0.08 mV

Pulse Range: 30 ns to CW

Recovery Time: 60 ns

Rise Time: 10 ns

Fall Time: 40 ns

SMA Female Connectors

Housing: 3.20" x 1.80" x 0.40"

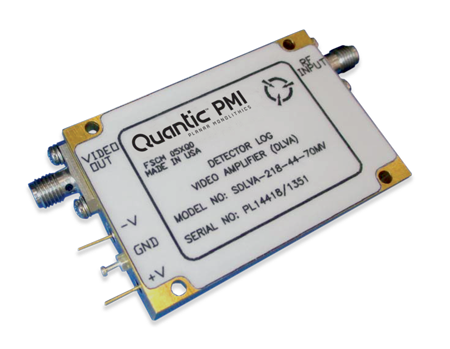

Logarithmic Amplifier

SDLVA-218-44-70MV

Frequency Range: 2 to 18 GHz

Flatness: 1.1 dB

Dynamic Range: -40 to +4 dBm

Log Linearity: +0.67 dB

Log Slope: 70.5 mV/dB

DC Offset at RF Terminated: -15 mV

Rise Time: 25 ns

Recovery Time: 500 ns

Noise at RF Terminated: 108 mV

Fall Time: 300 ns

TSS: -43 dBm

Pulse Width Range: 50 ns

Max Input Power: +20 dBm

SMA Female Connectors

Housing: 2.20" x 1.50" x 0.40"

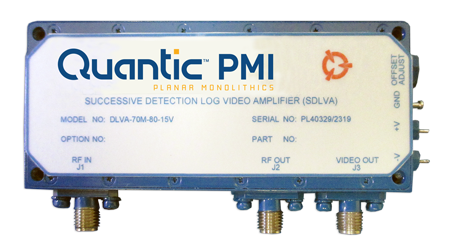

Logarithmic Amplifier

DLVA-70M-80-15V

Frequency Range: 50 to 90 MHz

Input VSWR: 1.47:1

Log Slope: 25.1 mV/dB

Log Linearity: ±1.23 dB

Rise Time: 23 ns

Limited RF Output: 1.8 dBm

SMA Female Connectors

Housing: 3.51" x 1.50" x 0.47"

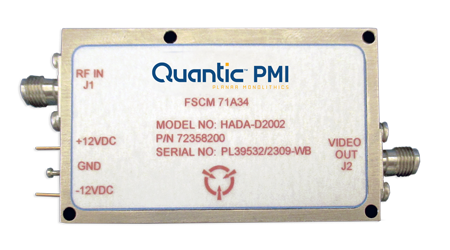

Logarithmic Amplifier

HADA-D2002

Frequency Range: 2 to 18 GHz

TSS: -40 dBm

Frequency Flatness: ±1.005 dB

Logging Accuracy: ±1.5 dB

Log Linearity: ±0.5 dB

Maximum Input Power: +23 dBm

Rise Time: 25.8 ns

Fall Time: 159.7 ns

SMA Female Connectors

Housing: 2.50" x 1.50" x 0.44"

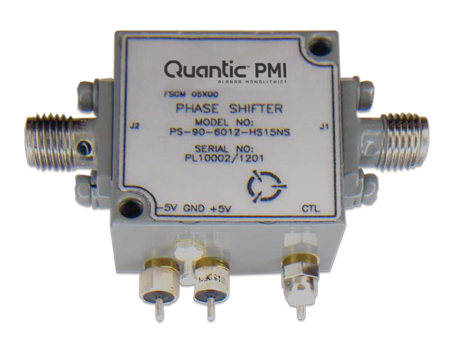

Bi-Phase Modulator

PS-90-6012-HS15NS

Frequency Range: 6 to 12 GHz

Insertion Loss: 2.7 dB

VSWR: 2.0:1

Operating Input Power: +20 dBm

Speed: 15 ns

Maximum RF Input: 0.5 W

Carrier Suppression: 20 dB

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.50"

Low Noise Amplifier

PLNA-30-10M20-SFF-DCSMA

Frequency Range: 0.01 to 20 GHz

Gain: +28 dB

Gain Flatness: ±1.13 dB

Noise Figure: 2.24 dB

OP1dB: +14.9 dBm

Psat: +16.4 dBm

OIP3: +20 dBm

VSWR: 2.0:1

Second Harmonics: 40 dBc

Reverse Isolation: 36.9 dB

SMA Female/Male Connectors

Housing: 1.37" x 1.00" x 0.50"

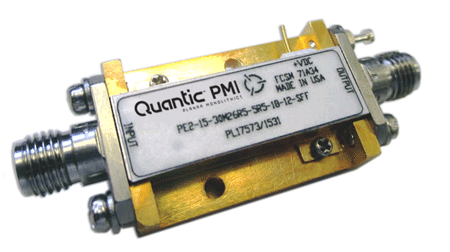

Low Noise Amplifier

PE2-15-30M26R5-5R5-18-12-SFF

Frequency Range: 0.03 to 26.5 GHz

Gain: +15 dB

Gain Flatness: ±1.8 dB

Noise Figure: 5.32 dB

OP1dB: 16 dBm

VSWR: 1.9:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Low Noise Amplifier

PEC-42-500M40G-20-12-292FF-BG

Frequency Range: 0.5 to 40 GHz

Gain: +41 dB

Gain Flatness: ±2.3 dB

Noise Figure: 5.5 dB

OP1dB: +19.1 dBm

Psat: +23dBm

VSWR: 1.68:1

Input Power Handling: +17 dBm

2.92mm Female Connectors

Housing: 1.37" x 1.00" x 0.60"

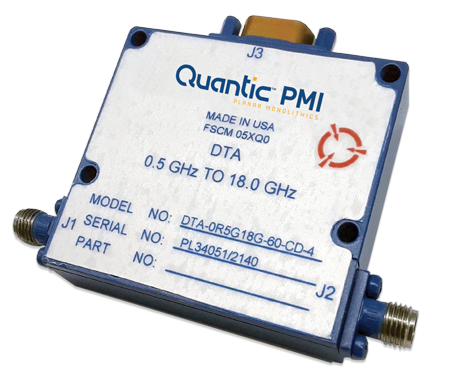

10-Bit Programmable Attenuator

DTA-0R5G18G-60-CD-4

Passband Frequency: 0.5 to 18 GHz

Insertion Loss: 3.5 dB

VSWR: 2.0:1

Flatness: ±0.54 dB

Accuracy of Attenuation: ±0.44 dB

Switching Speed: 1 us

SMA Female Connectors

Housing: 2.00" x 1.80" x 0.40"

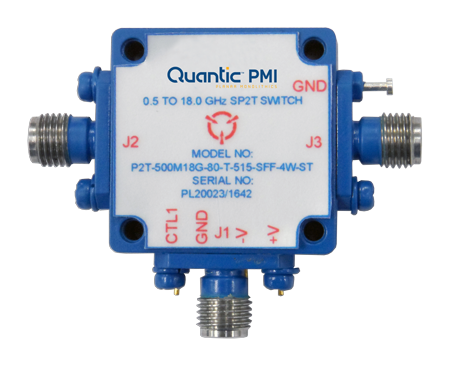

SP2T Absorptive Switch

P2T-500M18G-80-T-515-SFF-4W-ST

Frequency Range: 0.5 to 18 GHz

Isolation: 70.1 dB

Insertion Loss: 3.06 dB

VSWR: 1.74:1

Operating Power CW: 4 W

Operating Power Peak: 20 W

Switching Speed: 60 ns

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.40"

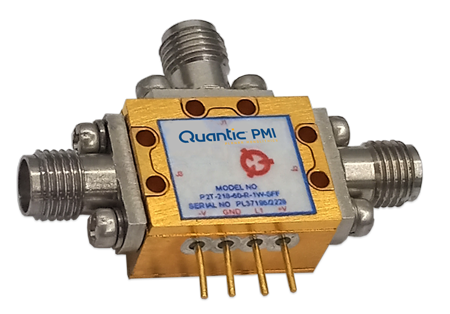

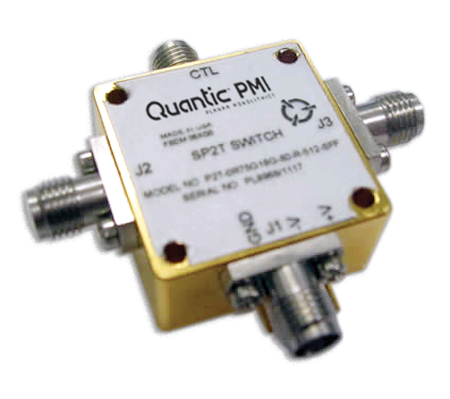

SP2T Reflective Switch

P2T-218-60-R-1W-SFF

Frequency Range: 2 to 18 GHz

Insertion Loss: 1.89 dB

Isolation: 60 dBm

VSWR: 1.31:1

Switching Speed: 25 ns

Operational Input Power: +23 dBm

SMA Female Connectors

Housing: 0.69" x 0.53" x 0.35"

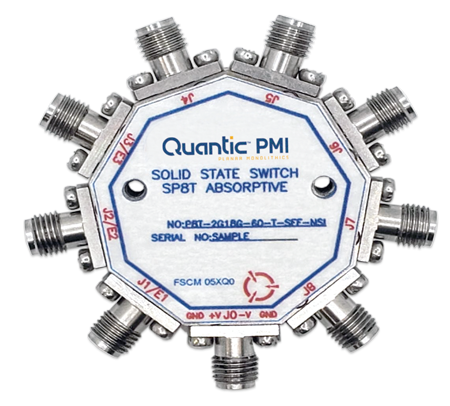

SP8T Absorptive Switch

P8T-2G18G-60-T-SFF-NSI

Frequency Range: 2 to 18 GHz

Insertion Loss: 2.23 dB

Isolation: 69.2 dB

VSWR: 1.89:1

RF Input Power: +20 dBm

Switching Speed: 100 ns

IIP3: +30 dBm

SMA Female Connectors

Housing: ⌀1.5" x 0.4"

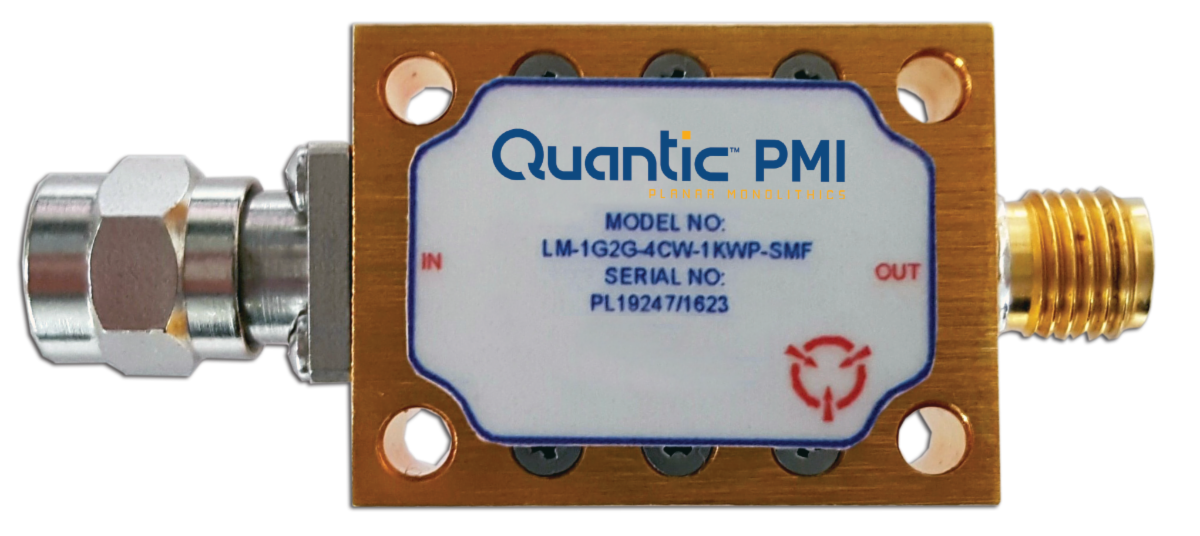

Limiter

LM-1G2G-4CW-1KWP-SMF

Frequency Range: 1 to 2 GHz

Insertion Loss: 0.69 dB

VSWR: 1.4:1

Input Power: 4 W CW

Maximum Flat Leakage: 15.35 dBm

Limiting Threshold: 12 dBm

Recovery Time: 100 ns

SMA Male/Female Connectors

Housing: 1.00" x 0.75" x 0.38"

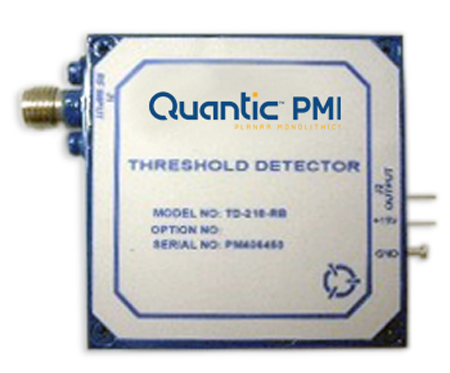

Threshold Detector

TD-218-RB-100M4G

Frequency Range: 0.1 to 4 GHz

Input Operating Range: -32 to -10 dBm

Input VSWR: 1.39:1

Threshold Level: -33 dB

Threshold Setting Stability: ±1.38 dBm

Maximum Input Power: +10 dBm

Response Time: 100 ns

SMA Female Connectors

Housing: 1.50" x 1.50" x 0.50"

High Pass Filter

7HP-800-600-3A-SMF

Frequency Range: 0.8 to 10 GHz

Insertion Loss: 0.81 dB

VSWR: 1.72:1

Rejection at 0.5 GHz: 40.2 dBc

3 dB Cutoff: 668.6 MHz

SMA Male/Female Connectors

Housing: 1.50" x 0.31" x 0.31"

High Pass Filter

HP2G-1780-CD-SS

Frequency Range: 2 to 18 GHz

3 dB @ Cut Off: 1.72 GHz

VSWR: 1.5:1

Insertion Loss: 0.5 dB

Rejection: 90 dB

SMA Female Connectors

Housing: 0.75" x 0.75" x 0.50"

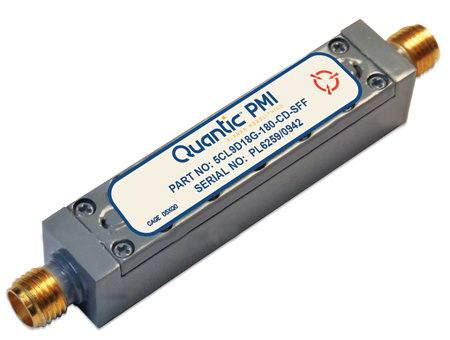

Bandpass Filter

5CL9D18G-180-CD-SFF

Center Frequency: 9.18 GHz

3 dB Passband Bandwidth: 0.182 GHz

Passband VSWR: 1.5:1

Passband Insertion Loss: 2 dB

Loss Ripple: 0.4 dB

Phase Linearity: ±5°

Rejection: 100 dB

Input Power: +30 dBm

SMA Female Connectors

Housing: 1.9" x 0.4" x 0.4"

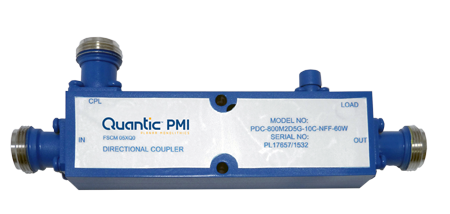

Directional Coupler

PDC-800M2D5G-10C-NFF-60W

Frequency Range: 0.8 to 2.5 GHz

Insertion Loss: 0.33 dB

VSWR: 1.04:1

Directivity: 32.3 dB

Coupling: 10.24 dB

Frequency Sensitivity: 0.24 dB

Power Handling: 60 W

N Female Connectors

Housing: 1.00" x 1.10" x 0.87"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
