Featured Products

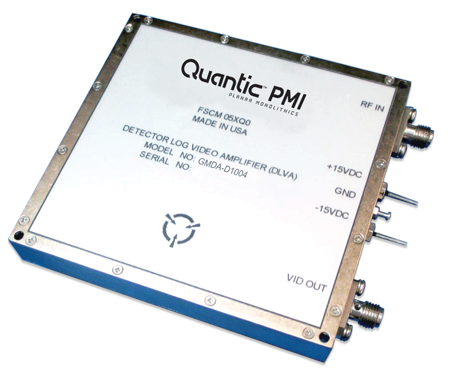

Detector Log Video Amplifier

GMDA-D1004

Frequency Range: 2.0 to 18.0 GHz

TSS: -65 dBm

Log Slope: 25 ± 1 mV/dB

Log Linearity: ±2.0 dB

Flatness: 61.5 mV

Input VSWR: 1.81:1

Video Rise Time: 21.9 ns

Recovery Time: 119 ns

Throughput Time: 23 ns

SMA Female Connectors

Housing: 3.50" x 3.20" x 0.50"

Detector Log Video Amplifier

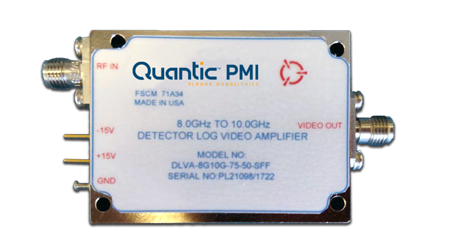

DLVA-8G10G-75-50-SFF

Frequency Range: 8.0 to 10.0 GHz

Flatness: ±0.8 dB

TSS: -79 dBm

Log Dynamic Range: -75 to 0 dBm

Log Slope: 50 mV/dB ± 2.15 mv/dB

Log Linearity: ±1.77 dB

DC Offset: 50 mV ± 49 mV

Rise Time: 26.3 ns

Fall Time: 100 ns

Recovery Time: 100 ns

SMA Female Connectors

Housing: 2.00" x 1.50" x 0.40"

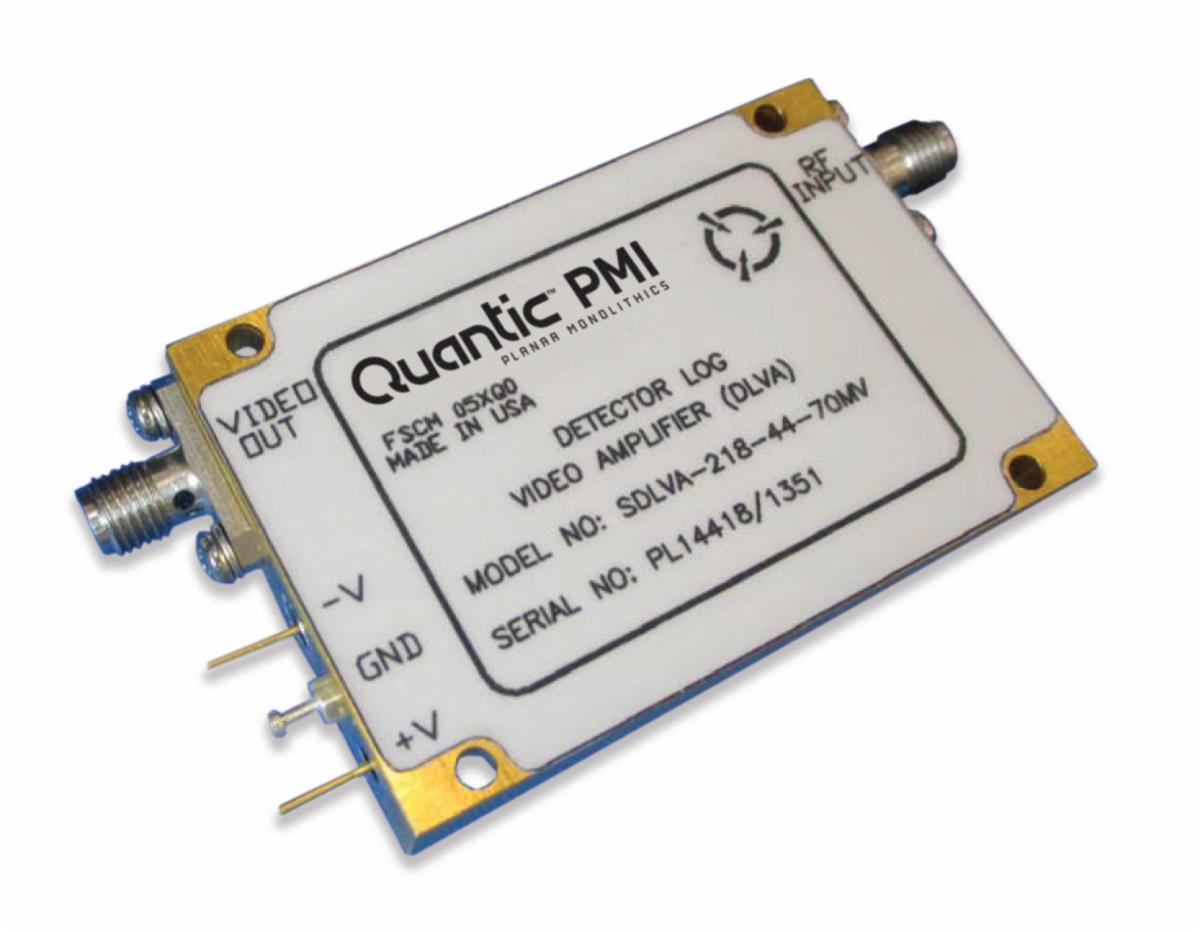

Successive Detector Log Video Amplifier

SDLVA-218-44-70MV

Frequency Range: 2.0 to 18.0 GHz

Flatness: ±1.1 dB

Dynamic Range: -42 to +5 dBm

Log Linearity at 25°C: ±0.82 dB

Log Slope: 71.2 mV/dB

DC Offset at RF Terminated: +42 mV

Rise Time: 19.3 ns

Recovery Time: 200 ns

Noise at RF Terminated: 100 mV

TSS: -44 dBm

Pulse Width Range: 50 ns to CW

Max Input Power: +20 dBm

SMA Female Connectors

Housing: 2.20" x 1.50" x 0.40"

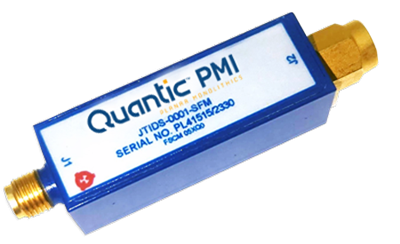

Fixed Attenuator

JTIDS-0001-SFM

Center Frequency: 1.085 GHz

Notched Bandwidth: 0.25 GHz

Passband Insertion Loss: 5 dB

Passband VSWR: 2.0:1

Rejection: 46.1 dBc

SMA Feale/Male Connectors

Housing: 1.50" x 0.50" x 0.50"

5-Bit Programmable Attenuator

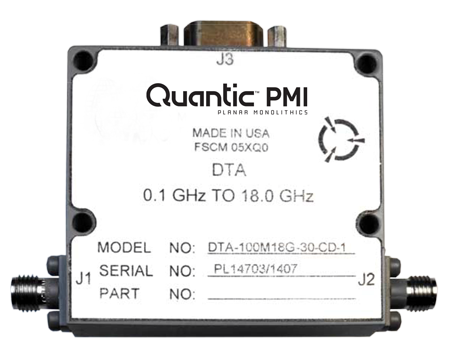

DTA-100M18G-30-CD-1

Frequency Range: 0.1 to 18.0 GHz

Mean Attenuation Range: 31.25 dB

Insertion Loss: 5 dB

VSWR: 1.7:1

Accuracy of Attenuation: 0.23 dB

Switching Speed: 1 us

2.92 mm Female Connectors

Housing: 2.00" x 1.80" x 0.50"

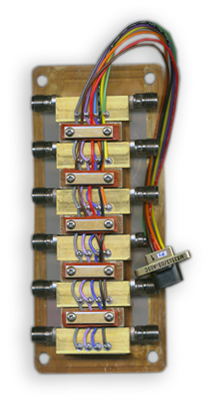

Switchable RF Attenuator

SAA-218-6-093-013542 Opt. HERM

Frequency Range: 2.0 to 18.0 GHz

Load Capacitance: 35 pF

Rise/Fall Time: 10 ns

Response Time: 40 ns

Repetition Rate: 500 KHz

Tolerance and Flatness: -0.8 dB/-18.9 dB

VSWR 1.9:1

OP1dB: 22 dBm

Isolation: 80 dB

Stability: -70 dBm

Video Spike Leakage: 450 mV

Spectral Activity: -70 dBm

SMA Female Connectors

Housing: 4.000" x 1.959" x 0.810"

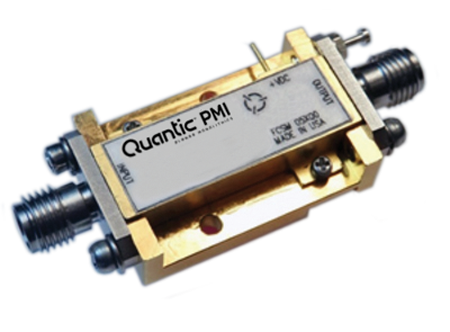

Low Noise Amplifier

PE2-22-218-20-12-SFF

Frequency Range: 2.0 to 18.0 GHz

Gain: +22 dB

Flatness: ±1.43 dB

Noise Figure: 4.5 dB

OP1dB: +20 dBm

VSWR: 2.0:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Low Noise Amplifier

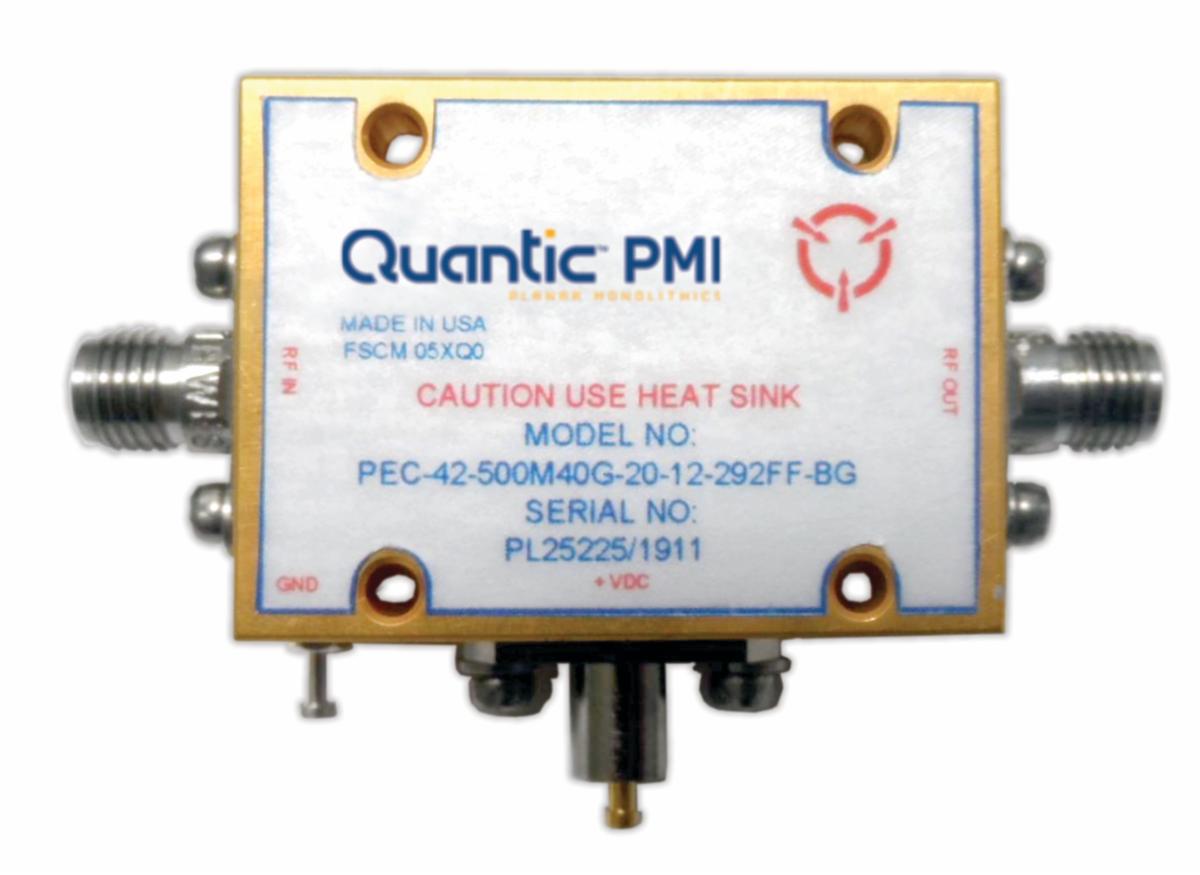

PEC-42-500M40G-20-12-292FF-BG

Frequency Range: 0.5 to 40.0 GHz

Gain: 41.1 dB

Gain Flatness: ±2.15 dB

Noise Figure: 5.5 dB

OP1dB: 17.3 dBm

Psat: +19.7 dBm

VSWR: 1.92:1

Input Power Handling: +17 dBm

2.92 mm Female Connectors

Housing: 1.37" x 1.00" x 0.60"

Single Pole, Two Throw, Absorptive Switch

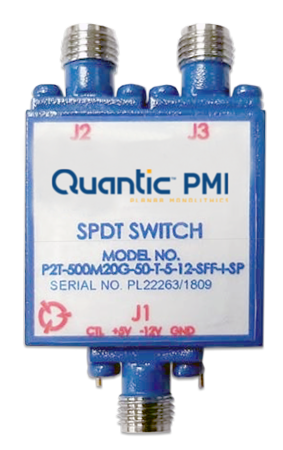

P2T-500M20G-50-T-5-12-SFF-I-SP

Frequency Range: 0.5 to 20.0 GHz

Insertion Loss: 2.61 dB

VSWR: 1.76:1

Input Power: +23 dBm

Isolation: 50.38 dB

Switching Speed: 40 ns

Surge Protection: 24 mA

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.50"

Single Pole, Three Throw, Absorptive Switch

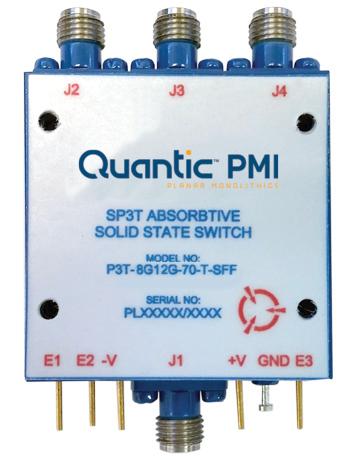

P3T-8G12G-70-T-SFF

Frequency Range: 8.0 to 12.0 GHz

Operating Power: 20 dBm

Survival Power: 30 dBm

VSWR: 1.41:1

Insertion Loss: 2.22 dB

Isolation: 77.8 dB

Switching Speed: 100 ns

SMA Female Connectors

Housing: 1.50" x 1.50" x 0.40"

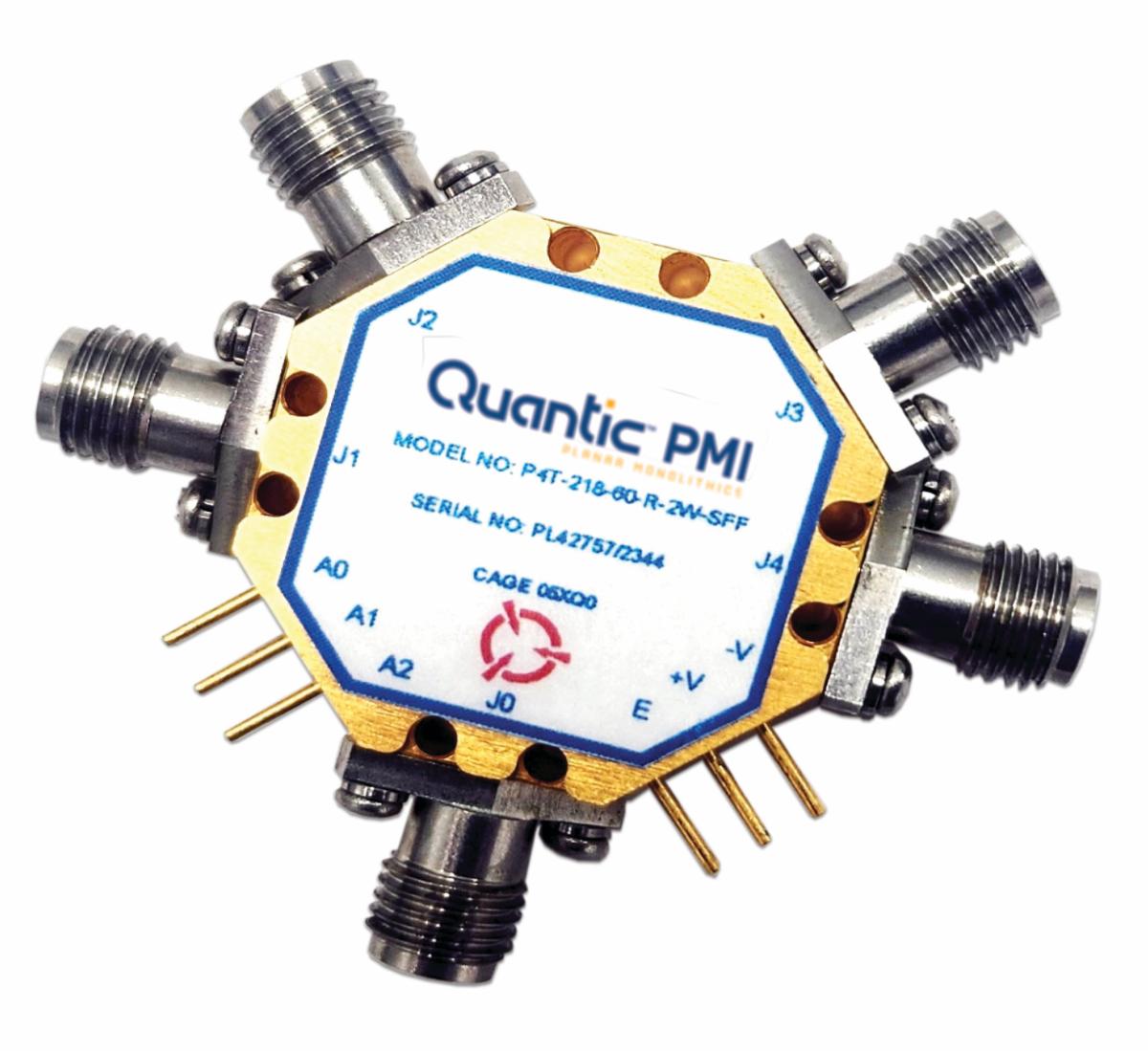

Single Pole, Four Throw, Reflective Switch

P4T-218-60-R-2W-SFF

Frequency Range: 2.0 to 18.0 GHz

Insertion Loss: 2.91 dB

Isolation: 70.4 dB

VSWR: 1.61:1

Switching Speed: 100 ns

Operating Power: 1 W

SMA Female Connectors

Housing: 0.97" x 0.97" x 0.37"

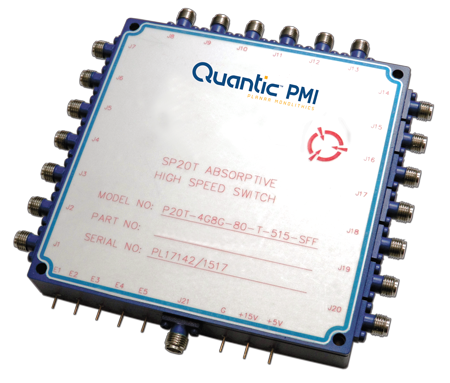

Single Pole, Twenty Throw, Absorptive Switch

P20T-4G8G-80-T-515-SFF

Frequency Range: 4.0 to 8.0 GHz

Isolation: 87.5 dB

Insertion Loss: 3.87 dB

VSWR: 1.79:1

Operating Power: 0.1 W

Switching Speed: 2000 ns

SMA Female Connectors

Housing: 4.00" x 4.00" x 0.63"

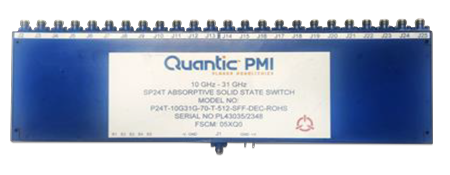

Single Pole, Twenty-Four Throw, Absorptive Switch

P24T-10G31G-70-T-512-SFF-DEC-ROHS

Frequency Range: 10.0 to 31.0 GHz

Insertion Loss: 10.86 dB

Isolation: 70.4 dB

VSWR: 1.94:1

Switching Speed: 100 ns

Operating Power: 23 dBm

2.92 mm Female Connectors

Housing: 12.00" x 3.50" x 0.65"

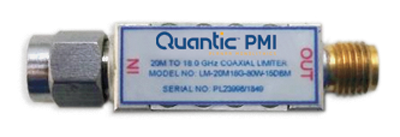

Limiter

LM-20M18G-100W-15DBM

Frequency Range: 0.02 to 18.0 GHz

Insertion Loss: 2.49 dB

VSWR: 1.87:1

Input Power: 100 W

Max Pulsed Peak Power Handling: 1 kW

Max Flat Leakage: +15 dBm

P1dB: +5 dBm

Recovery Time: 100 ns

SMA Male/Female Connectors

Housing: 0.90" x 0.38" x 0.38"

Limiter

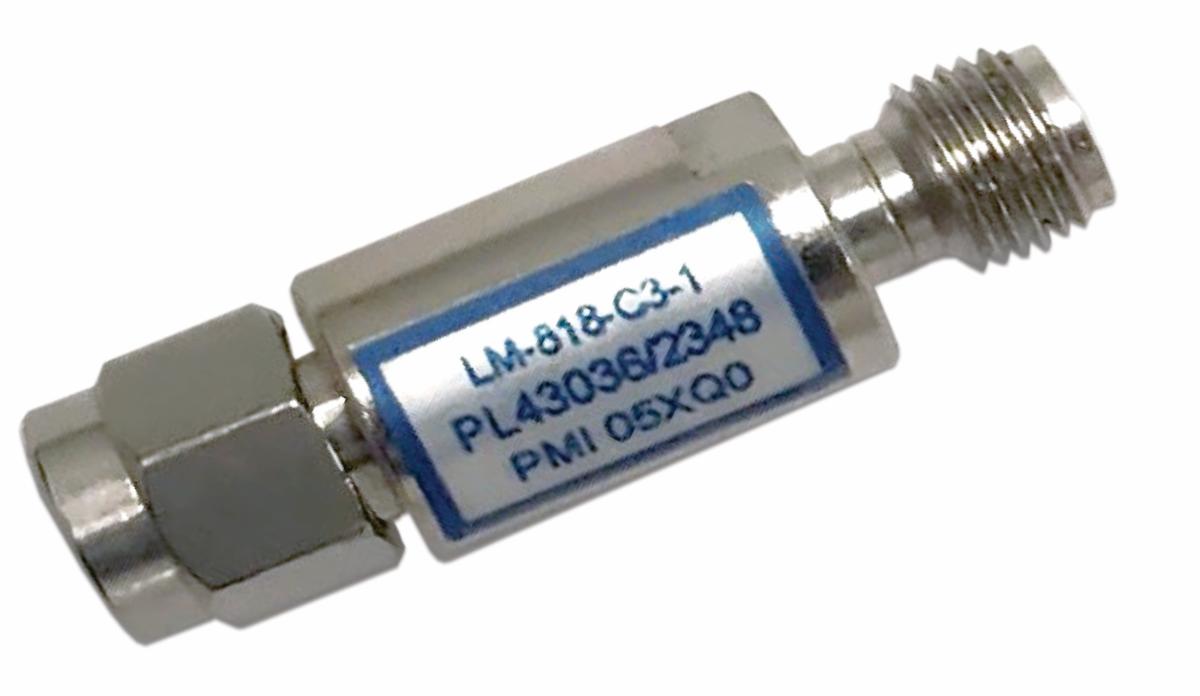

LM-818-C3-1

Frequency Range: 8.0 to 18.0 GHz

Insertion Loss: 1.65 dB

VSWR: 1.74:1

Leakage Power: +8.21 dBm

Power Handling: 3 W

Recovery Time: 1000 ns

2.92 mm Male/Female Connectors

Housing: 1.314" x ø0.375"

Passive Equalizer

EQL-DC40-20-292FF

Frequency Range: 0.01 to 40.0 GHz

Insertion Loss: 20.12 dB

VSWR: 1.54:1

Slope: 0.5 dB/GHz

Input Power: +30 dBm

Amplitude Accuracy: 1.36 dB

2.92 mm Female Connectors

Housing: 0.53" x 0.58" x 0.26"

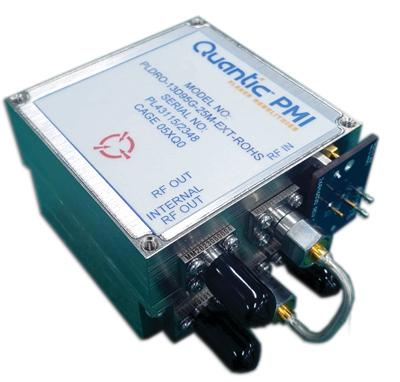

Phase Locked Oscillator

PLDRO-13D95G-25M-EXT-ROHS

Output Frequency: 13.95 GHz

Reference Frequency: 0.025 GHz

Input Power Level: +10 ± 3 dBm

VSWR: 3:1

Output Power Level: 13.3 dBm

Output Spurious: -94.3 dBc

Output Harmonics: -25.14 dBc

Reference Input Spurious: -80 dBc

SMA Female Connectors

Housing: 2.25" x 2.25" x 1.41"

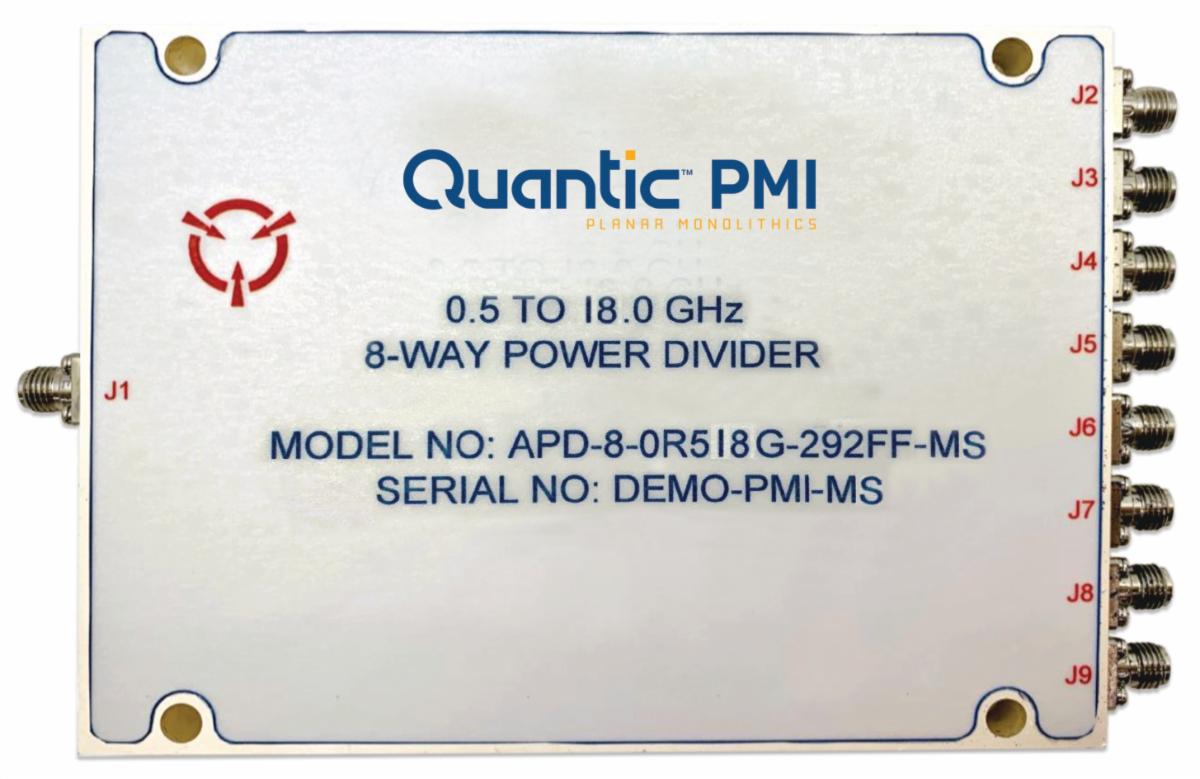

8-Way Power Divider

APD-8-0R518G-292FF-MS

Frequency Range: 0.5 to 18.0 GHz

Insertion Loss: 1.75 dB

Insertion Loss Flatness: 0.75 dB

VSWR: 1.94:1

Isolation: 20.95 dB

Amplitude Balance: 0.07 dB

Phase Balance: 1.69°

Average Power: 25 W

2.92 mm Female Connectors

Housing: 5.00" x 3.70" x 0.43"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
