DNA Gel Imaging Using the

UVP Gel Compact Imager

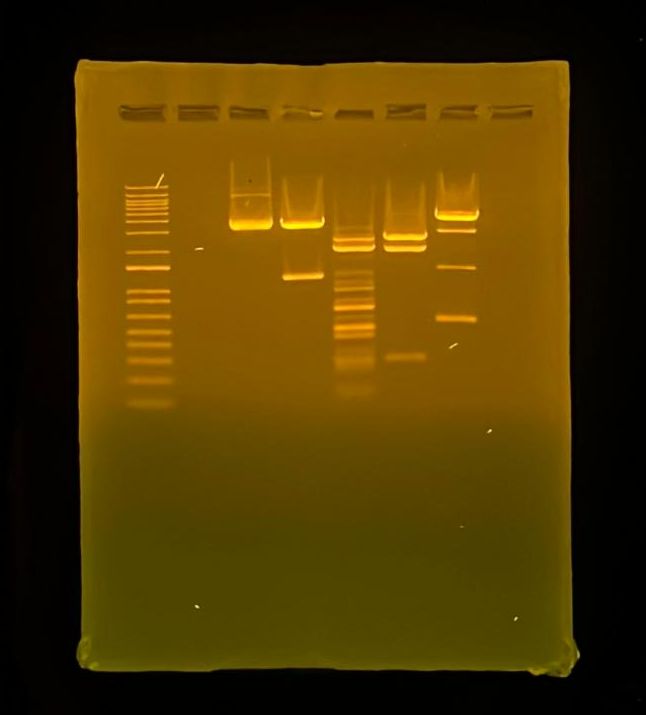

Figure 1. DNA Gel Image, Lane 1: DNA Ladder, Lane 2: Empty, Lane 3: pBR322 Plasmid DNA, Lane 4: pBR 322 Plasmid DNA digested by FastDigest HincII, Lane 5: pBR 322 Plasmid DNA digested by FastDigest Bfold, Lane 6: pBR 322 Plasmid DNA digested by FastDigest Bgll, and Lane 7: pBR 322 Plasmid DNA digested by Fast Digest Alw44l

DNA Gel electrophoresis is a technique used in many research facilities to separate molecules based on size. Introduced in the early 1970’s, it has revolutionized molecular biology. Imaging systems have been created to visualize this data and have advanced over the years. It is of the utmost importance that these systems are precise for the best results. Analytik Jena has been a part of the improvement of these imaging systems. The UVP Gel Compact Imager was developed especially for labs and classrooms that cannot afford the overpriced imaging instruments on the market. This brand-new product can be used for gel imaging as well as colony counting imaging and analysis.

Features

■ Camera: Unique feature of using your own cellphone to take images of your sample

■ Illumination: Overhead white and blue LED light, and UVP UV Transilluminator at 302 nm

■ Filter Tray: Four (4) position automated emission filter tray with EtBr emission filter included

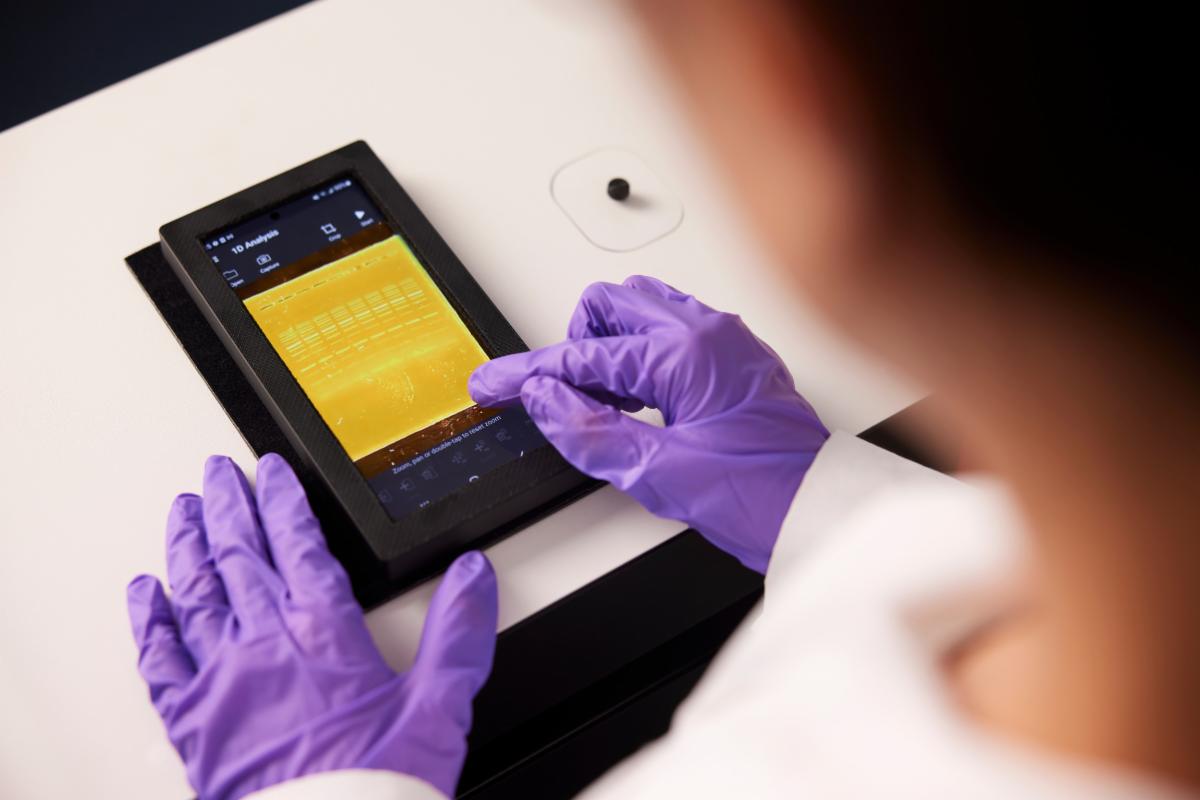

■ Software and Automation: Darkroom fully automated and controlled through cellphone via the VisionWorks mobile app. VisionWorks App allows the user to capture images with a smartphone which instantly uploads to the cloud for analysis and notation

■ Accessories: A phone adapter/holder is included with each unit allowing for a range of phone sizes that work seamlessly with the UVP Gel Compact. *Phone is not included with the unit*

■ Optional Accessories: The UVP Visi-White Converter plate, UVP Visi-Blue converter plate, UVP Visi-Blue LED Transilluminator, and a range of emission filters are available for purchase
