(2) Hosokawa-Alpine Multiwheel Ceramic-Lined Air Classifiers

& (2) 8' x 15' Silex-Lined Continuous Ball Mill Systems

Equipment is Being Dismantled and is Immediately Available

Item # C745127

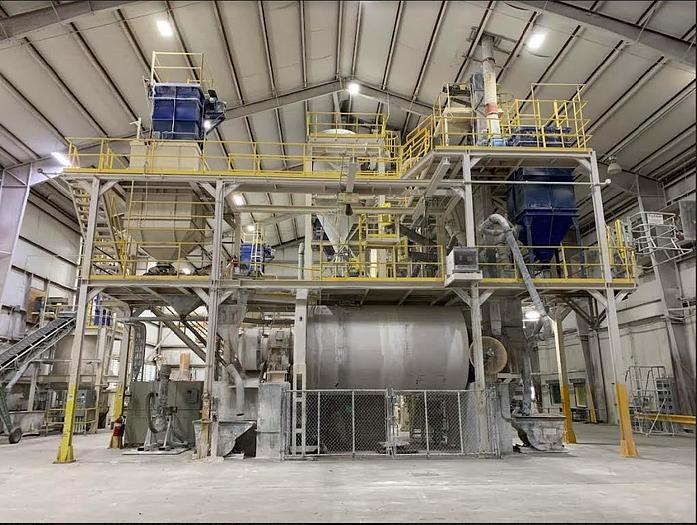

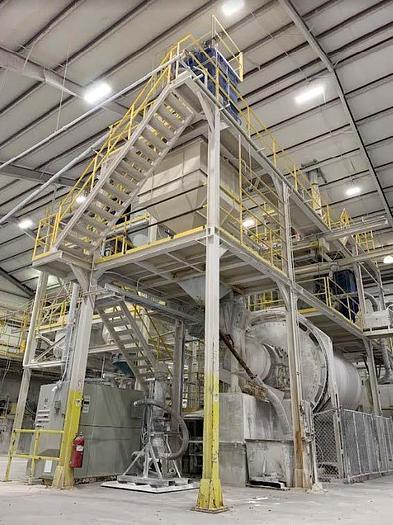

(Qty 2) 8’ x 15’ Ball Mill System with Air Classifier and Dust Collection. Silex-lined ANIVI ball mill driven by 275 kW (370 HP) motor through 10:1 gear reducer, inside dimensions measure 2420mm diameter by 4500 mm long. Includes girth ring, trunnions, and spare motor. System includes Ramsey Weigh Belt Feeder, 600 mm wide, with load cells, controls, and spare belt; 8’ diameter Sturtevant Dynamic Air Classifier driven by 25kW motor; (3) 9” diameter Jervis B. Web Screw Conveyors, measuring 12’, 20’, and 22’ long; (2) Mikro-Pulsaire Dust Collectors (model 49S-4-20, 461 Sq Ft and model 81S-8-20, 762 Sq Ft); and 40’ high ANIVI Bucket Elevator. Previously milling dry zircon with 7.5 Mohs hardness at capacity of 10 metric tons per day.

Request A Quote

Item # C745129

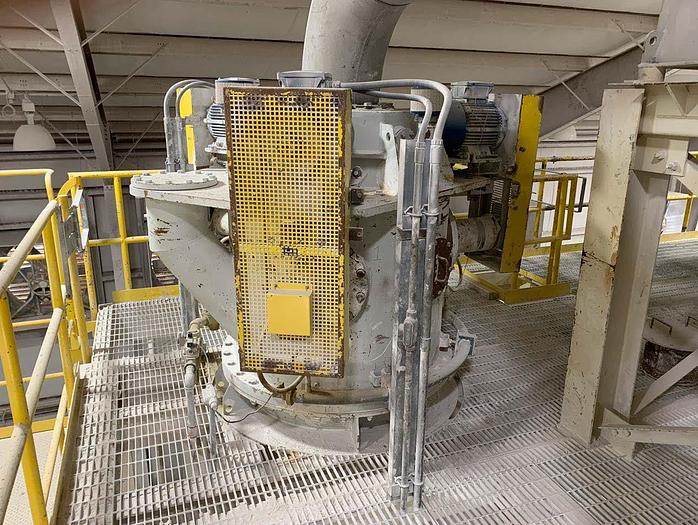

(Qty 2) Hosokawa Alpine 315/3 Turboplex ATP Ultrafine Air Classifier System, ceramic lined classifying wheels and vessel for abrasive applications, rated for fineness of 6-150 micron, feed rate of 1500-7500 kg per hour, featuring (3) 315mm diameter classifying wheels, each rated for 400-4000 rpm speed and 11kW motor through V-belt drive (33 kW total). Scale up factor of F=7.5, air flow rate of 9000 m3/h, fines yield of 1 t/h at 8 µm, 2.1 t/h at 20 µm, 3 t/h at 45 µm. Offered with Hokokawa Alpine High Performance Filter Baghouse Dust Collector, Reitz Ventilatoren High Performance Blower, driven by 90 kW motor, rated for 125 m3/min air flow, 3 PSI static pressure. Ideal for processing limestone, calcite, chalk, dolomite, feldspar, talcum, quartz, kieselguhr, gypsum, graphite, wollastonite, abrasive materials, toner, wax, heavy metal powders, pigments, flours, starches, and other ultrafine classification operations.

Request A Quote
