SAFETY MINUTE
SAFETY BOOTS
Installation Instructions:
  1. Read and follow the manufacturer's specifications for installation.
  2. Follow the correct fastener specifications for the type of subfloor material.

Proper Installation Sequence:
  1. Assembling posts
  2. Placing posts into the ‘Safety Boot’
  3. Anchoring posts to surface with correct fasteners (depending on subfloor material) and using the provided washers ***NEVER USE NAILS***
  4. Fasten rails to posts and insert toeboard (if needed)

Specifications:
  • Each boot should have two (2) (2x4) lumber cut into 42 inch lengths.
  • Fasten lengths together to form a post
  • Fasten ‘Safety Boot’ to post using one Hex-Head Lag Screw 3/8” with provided washer.
  • Maximum distance between posts must not exceed eight (8) feet.
  • Securely fasten ‘Safety Boots’ to surface using specified fasteners and provided washers (see installation manual)
  • NEVER USE NAILS
  • Fasten top rails and mid rails to posts and insert toeboards (if needed)

Inspections:
  • Perform routine inspections to ensure the guardrail system is in compliance with OSHA’s Subpart M 1926.502(b)

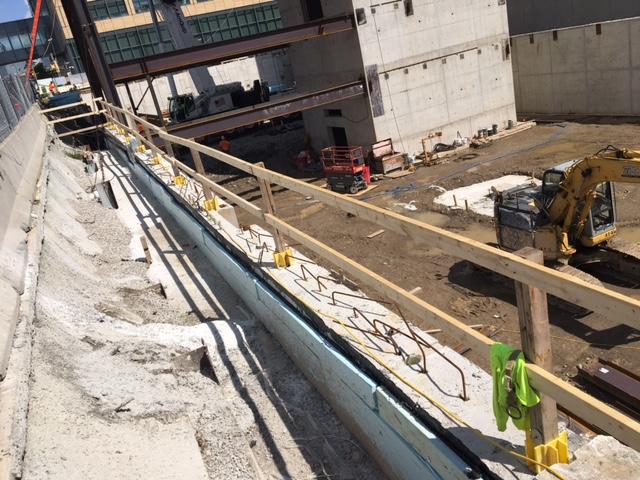

Pictured Above: Properly installed ‘Safety Boot’ Guardrail System on current IMC project.

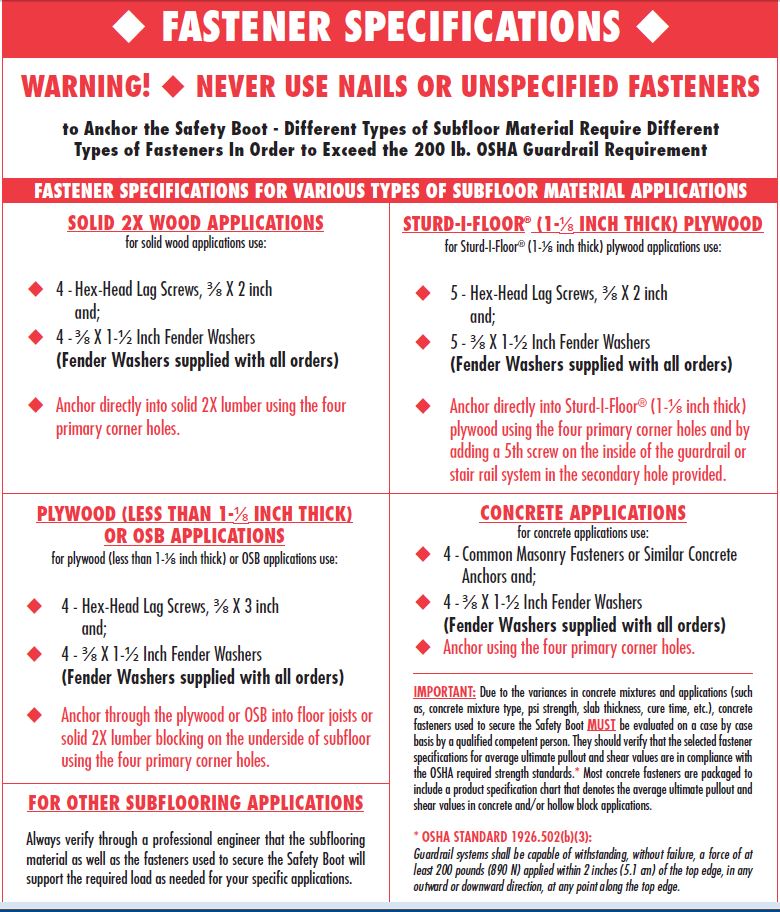

Fastener Specifications for various types of
subfloor material applications
For more information regarding specifications of the ‘Safety Boot’ manufactured by Safety Maker™ , please visit:
