The two large vaneaxial supply fans (70,000 cfm & 125 Hp each, 8.6 in.w.c. design static pressure) in the main air handler at the UF Veterinary Medicine building had been problematic for several years, due to both the age of the fans and the logistics of keeping the AHU off-line to make repairs.

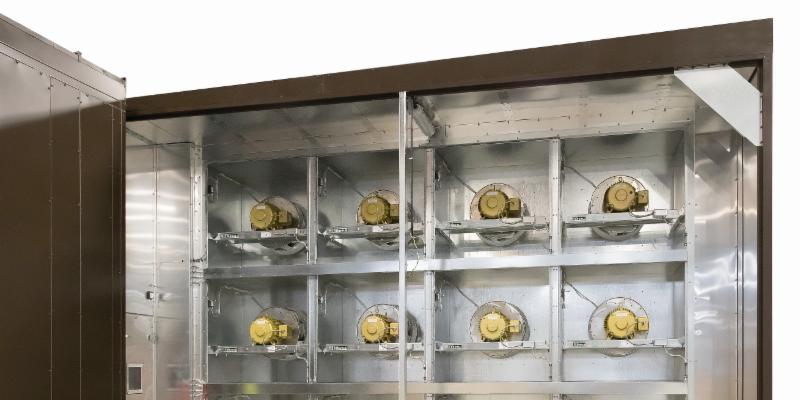

The solution was to retrofit a FANWALL in place of the vaneaxial fans. A FANWALL retrofit, with its “building block” assembly style and customizable dimensions, permitted easy assembly into the supply fan plenum, and was built in two sections matching the existing internal dimensions of the air handler.
