audio: of or relating to sound or its reproduction and especially high-fidelity reproduction.
classic: 1. Of the highest rank or class. 2. Having lasting significance of recognized worth, judged over time to be of the highest quality and outstanding of its kind.
|
|
What is an Audio Classic? An enduring work
of excellence and authority. Timeless design, flawless performance, outstanding value and reliability. Audio Classics trades in these products, products that will continue to deliver
outstanding performance as the years go by. Audio Classics continuously searches for the best equipment for your home entertainment.
After all that's what it takes to be an Audio Classic.
8 AM- 5PM Monday-Friday EST
3501 Vestal Rd. Vestal, NY 13850
The United States of America
|
|

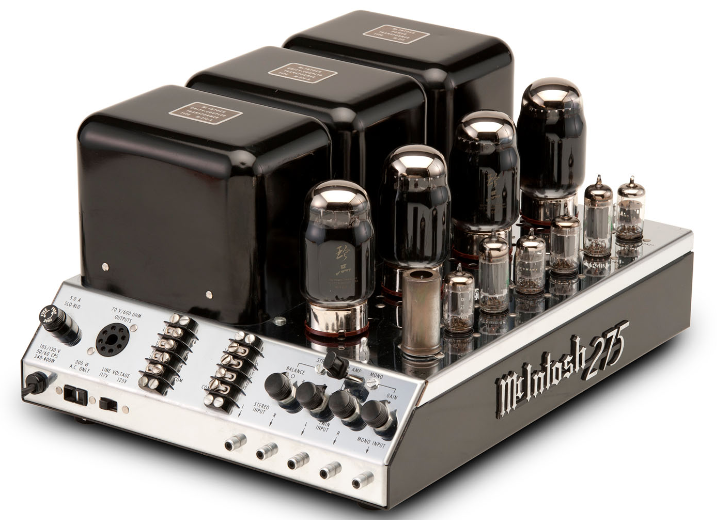

ELECTRICAL: 75w/ch stereo, 150w mono. Response 16-40kHz (+0 -0.1dB). Distortion 0.5%. Noise & hum -90dB. Output impedance 4, 8, 16, 67 and 600 ohms. 600 ohm center tap internally grounded. (2, 4, 8, 16 and 32 ohms in mono). Output voltages 25V (isolated), 70.7V (one side grounded) and 230V (center tap grounded). Internal impedance less than 10% of rated impedance. Input impedance 250k. Input sensitivity: 0.5V (in mono or twin amp). 2.0V in stereo.
MECHANICAL: Chrome chassis. Line output octal socket for higher impedances and voltages. Barrier strips for 4, 8 and 16 ohms. Audio inputs: stereo, twin and mono. Gain controls: twin amp, balance and mono. Input switch: stereo, twin amp or mono. Can be used for 150w mono. Line voltage switch: 117 or 125V.
TUBES: 4-KT88/6550 output, 12AX7, 2-12AU7, 2-12AZ7, 2-12BH7. Solid state rectifier bridge.
Size 8"H, 12-1/4"W and 17-1/4"D. Weight 76 lb.
Sold from 1961-today
Made in The United States of America
MC275 $3995-10000
MC275-II $3995-4995
MC275G $7995
MC275-MKIV $3995-4995
MC275-MKVI $4995-6500
|
|

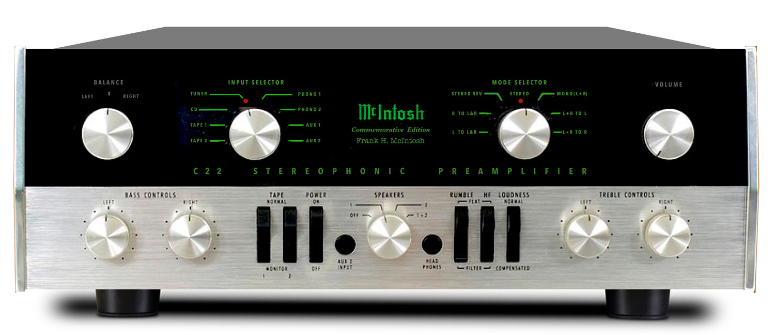

ELECTRICAL: Response 20-20kHz (+0.5 -0.5dB). Distortion 0.02%. Noise and hum -85dB high level. Output rated 2.5v, 10v max. Input sensitivity and impedance: aux 0.25V at 250k, phono 2mV at 47k. Center channel out (L+R) 1.0v with control. Individual tone controls: bass and treble +20dB to -20dB. Rumble filter 50Hz at 12dB/octave. HF filter 5kHz at 12dB/octave. Low frequency trim controls 6dB of boost below 100Hz. Voltage gain 20dB aux, 62dB phono.
FRONT PANEL: Glass panel at top. Anodized gold at bottom. Input selector with indicator lights: aux, tape, tuner 2, tuner 1, phono 1, phono 2, mic and tape hd. Mode selector with indicator lights: L to L+R, R to L+R, stereo rev, stereo, mono (L+R), L+R to L and L+R to R. Volume. Bass controls: left and right, Treble controls: left and right. Tape jacks: left and right. Tape jacks switch: record and playback. Rocker switches: comp: RIAA or LP, tape: normal or monitor, power: on or off, rumble: flat or filter, hf: flat or filter, loudness: normal or compensated.
TOP PANEL: L+R level. Left level. Right level. Low frequency trim: L and R. Tape equalization: L and R with NAB mark. Phase switch: left channel speaker reverse(180) or normal (0). Pilot lamp intensity: dim or bright.
BACK PANEL: Outputs: L+R, main, tape. High level inputs: tape monitor, aux, tape, tuner 1, tuner 2. Low level inputs: phono 1 phono 2, mic and tape hd. Ground binding post. AC outlets: 4 switched, 1 unswitched. Fuse, Panloc mounting.
TUBES: 6-12AX7. Solid state rectifier bridge.
Size 5-7/16"H, 16"W and 13"D behind panel. Weight 16 lb.
Sold from 1963- today
Made in The United States of America
C22 $4599-9999
C22-II $4299
C22-MKV $4999-6500
|
|

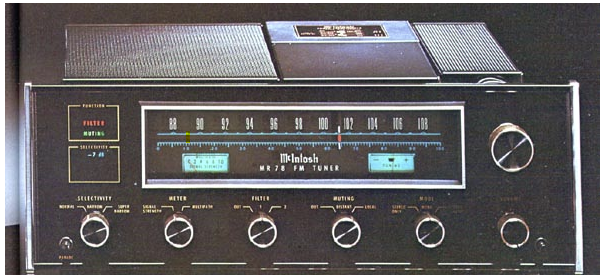

ELECTRICAL: Sensitivity 2uV for 35dB of quieting. Response 20-15kHz (+1 -1dB) stereo. Distortion 0.2% in stereo. Capture ratio 2.5dB. Selectivity: adjacent channel = 7dB normal, 22dB narrow and 55dB super narrow. alternate channel = 55dB normal, >90dB narrow and >>90dB super narrow. Image rejection 100dB. S/N 75dB. Separation stereo 40dB@1kHz. Stereo filter noise reduction 10dB position 1, 20dB position 2. Spurious rejection 100dB. SCA rejection 50dB. Maximum signal input 12V across 300 ohms. Hum -70dB. Audio output 2.5V with front panel control. Audio output fixed 2.5V.
FRONT PANEL: Glass front panel with black & gold escutcheon. Selectivity sw: normal, narrow or super narrow. Meter sw: signal strength or multipath. Filter sw: out, 1 or 2. Muting sw: out, distant or local. Mode sw: stereo only, mono or stereo auto. Volume with on-off switch. Tuning ctrl. Signal strength and tuning meters.
BACK PANEL: Audio out 2.5V variable and 2.5V fixed. 300 or 75 ohm fm cable input. Scope outputs. Panloc mounting.
Size 5-7/16"H, 16"W and 13"D behind panel. Weight 27 lb. Sold from 1972-1979
Made in The United States of America
Last retail price $1699.00 Now $999-2999
|
|

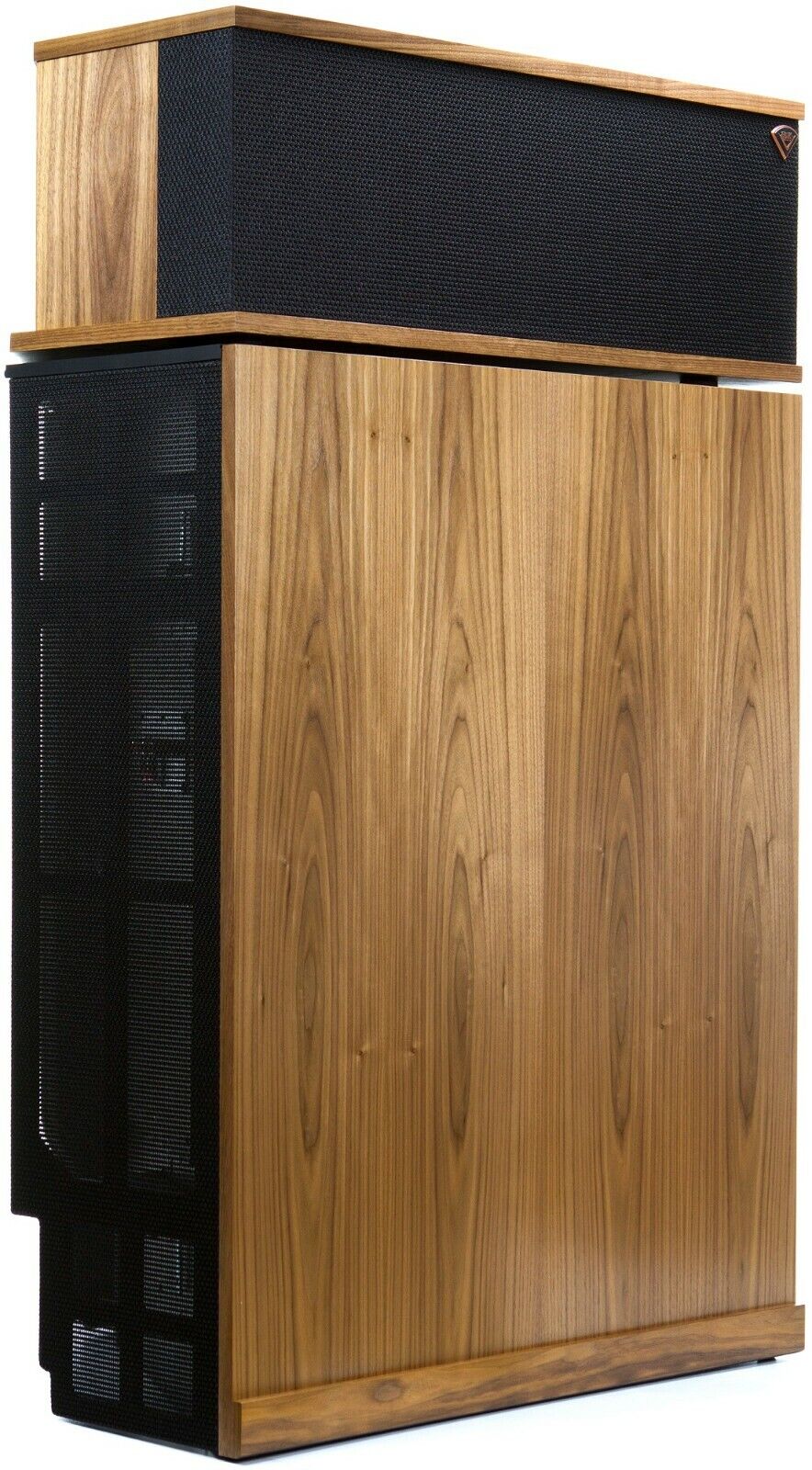

Audio pioneer and company founder Paul W. Klipsch launched the Klipschorn loudspeaker in 1946 to enable people, for the first time ever, to experience the power, detail, and emotion of a live performance at home. Commonly called a corner-horn speaker, the remarkably uncommon Klipschorn includes a highly efficient horn-loaded tweeter and midrange compression driver. It's patented folded-horn 15" woofer delivers powerful low frequencies.
Features:
- Highly efficient: 105 dB 1W / 1M
- Fully horn-loaded, full range, three-way system with a patented folded-horn 15" woofer delivers powerful low frequencies
- 2" midrange and 1" tweeter compression drivers
- Capable of extreme output levels with ultra low distortion and astonishing dynamic range
- Available in a high-quality Walnut, Cherry, or Black Ash wood veneer finish
- Made in The United States of America
Klipschorn $9999-14999
Klipschorn-AK6 $11289-16498
Klipschorn-75th $15499-16999
|
|
Have you been eyeing a new component but were unsure of what to do with your existing ones?
Now with the Audio Classics TradeUP Program, there's an easy way for you to upgrade to a current model without having to pay full price or having to deal with the hassle of selling your existing components. Simply trade in your qualified mono or stereo amplifier, preamplifier, integrated amplifier, tuner or receiver and get up to 75 percent of the price you paid for it towards the purchase of a new amplifier, pre-amplifier, integrated amplifier or receiver.
|
|
