Machine 28638 LVD/STRIPPIT S1225 THICK
TURRET
Model: S1225
NEW 2008

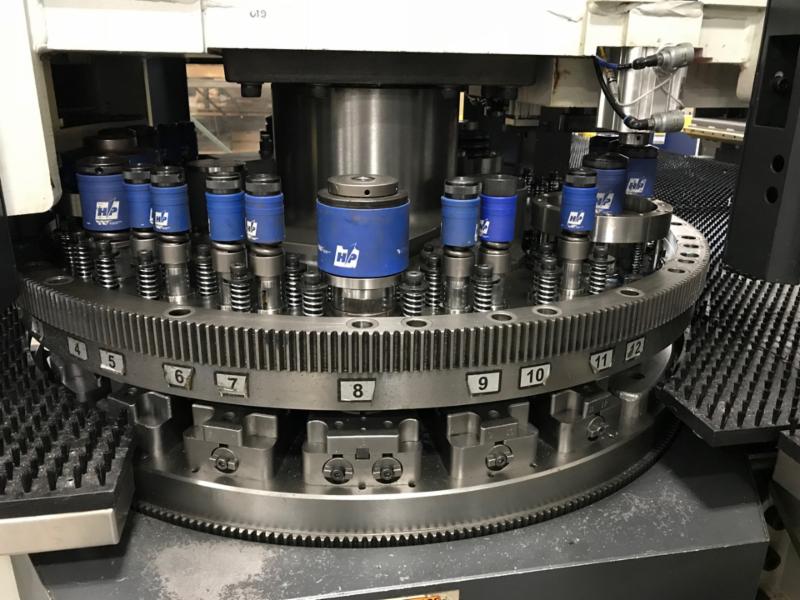

Turret: 31 STATIONS (THICK)
(3) 3.5 in., auto-index stations
GE Fanuc 180i control:
The PC-based Fanuc control provides
diagnostics, large program storage capacity,
and networking. The interface uses graphic tool i
images and graphic help screens to assist
the user with tool and job data input.
work piece sizes: up to 1250 x 2500 mm [49.21” x 98.4”]) x .250 in.
With progressive moves 49.21” x 160”
Maximum Hit Rate: at .08" (2 mm) Working Stroke**
0.039" (1,0 mm) Feed Rate = Up to 840 HPM
1.00" (25,4 mm) Feed Rate = Up to 330 HPM
Marking Stroke (standard) = Up to 1700 SPM
One Turret Station Change Time = 1.1 sec.
Max Turret Station Change Time = 2.6 sec.

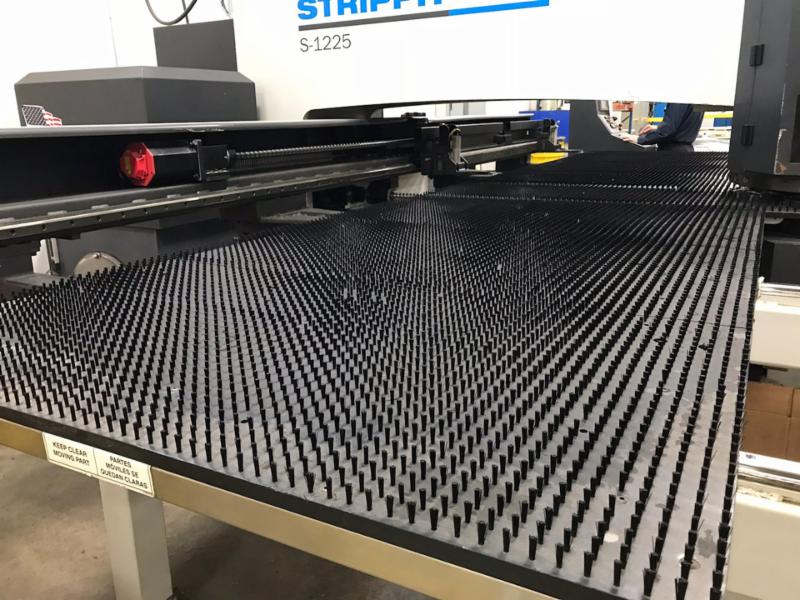

Table Type Capacities:
- All Brush or Combo Ball Brush = Up to 136 lbs. (62 kg) at 100% speed
Max. Thickness .137" (3,5 mm) Steel,
.250" (6,35 mm) Aluminum = Up to 161 lbs. (73 kg) at 75% speed
= Up to 187 lbs. (85 kg) at 50% speed
= Up to 242 lbs. (110 kg) at 25% speed
Clamps: 3
Maximum Clamp Spread = 74.67" (1900 mm)
Punching Accuracy: ± .004” accuracy and ± .002 in. repeatability.
Angular Positioning Accuracy ± .05 degree
SMART STROKE Exclusive Smart Stroke® , feature automatically calculates the
optimum ram hover height to maximize punching productivity
Tonnage: 22 tons of punching force.
QUOTE IS APPROXIMATE AND MACHINE CAN BE INSPECTED UNDER POWER.
Warranty per inspection.
Original Price: $119,900.00
NOW: $109,900.00
